Name: Pavement Striping

Display Field: STREET

Type: Feature Layer

Geometry Type: esriGeometryPolyline

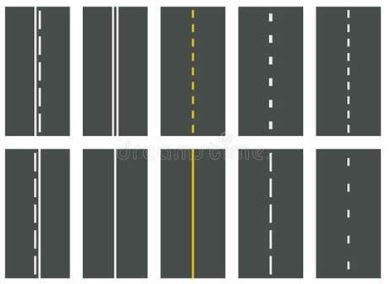

Description: There are different colors in the road stripes, usually yellow or white and each of the colors and stripes together have different meanings, for example a double yellow stripe indicates traffic flowing in both directions and the stripe should not be passed as it might be a hazard to oncoming traffic. Road stripes help traffic flow in a well mannered regulated way.

Copyright Text: Current TPW Director: Lauren Prior (Lauren.Prior@fortworthtexas.gov) Current Assistant TPW Director: Martin Phillips (Martin.Phillips@fortworthtexas.gov) Subject Matter Expert: Quenell Johnson (Quenell.Johnson@fortworthtexas.gov) Data Steward: Keith SoRelle (Keith.Sorelle@fortworthtexas.gov) For customer service please contact (817) 392-1234

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 2251614.253703475
YMin: 6882362.932783976
XMax: 2418953.371452391
YMax: 7066052.086402312
Spatial Reference: 102738  (2276)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSLSDash
Color: [230, 230, 0, 255]
Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• STREET ( type: esriFieldTypeString, alias: STREET, length: 50 )
• TYPE ( type: esriFieldTypeString, alias: TYPE, length: 30 , Coded Values: [BICYCLE STRIPING: BICYCLE STRIPING] , [CROSSWALK: CROSSWALK] , [DIAGONAL: DIAGONAL] , ...18 more... )
• COLOR ( type: esriFieldTypeString, alias: COLOR, length: 20 , Coded Values: [RED: RED] , [BLACK: BLACK] , [BLUE: BLUE] , ...5 more... )
• CONDITION ( type: esriFieldTypeString, alias: CONDITION, length: 10 , Coded Values: [75: Good] , [50: Fair] , [25: Poor] , ...2 more... )
• RAISEDPAVEMENTMARKERS ( type: esriFieldTypeString, alias: RAISEDPAVEMENTMARKERS, length: 10 , Coded Values: [YES: Yes] , [NO: No] , [NA: Not Rated] )
• FLEXCURB ( type: esriFieldTypeString, alias: FLEXCURB, length: 10 , Coded Values: [YES: Yes] , [NO: No] , [NA: Not Rated] )
• FLEXPOLE ( type: esriFieldTypeString, alias: FLEXPOLE, length: 10 , Coded Values: [YES: Yes] , [NO: No] , [NA: Not Rated] )
• WIDTH ( type: esriFieldTypeDouble, alias: WIDTH (inches) )
• LENGTH ( type: esriFieldTypeDouble, alias: LENGTH (feet) )
• COMMENTS ( type: esriFieldTypeString, alias: COMMENTS, length: 250 )
• INSTALL_DATE ( type: esriFieldTypeDate, alias: INSTALL_DATE, length: 8 )
• OWNER ( type: esriFieldTypeString, alias: OWNER, length: 50 , Coded Values: [FORT WORTH: Fort Worth] , [FORT WORTH - PARD: Fort Worth - PARD] , [CO-SERVE: Co-Serve] , ...26 more... )
• MAINTAINEDBY ( type: esriFieldTypeString, alias: MAINTAINEDBY, length: 50 , Coded Values: [FORT WORTH: Fort Worth] , [FORT WORTH - PARD: Fort Worth - PARD] , [CO-SERVE: Co-Serve] , ...26 more... )
• INSTALL_YEAR ( type: esriFieldTypeSmallInteger, alias: INSTALL_YEAR )
• ASSET_ID ( type: esriFieldTypeString, alias: ASSET_ID, length: 10 )
• CREATED_USER ( type: esriFieldTypeString, alias: CREATED_USER, length: 255 )
• CREATED_DATE ( type: esriFieldTypeDate, alias: CREATED_DATE, length: 8 )
• LAST_EDITED_USER ( type: esriFieldTypeString, alias: LAST_EDITED_USER, length: 255 )
• LAST_EDITED_DATE ( type: esriFieldTypeDate, alias: LAST_EDITED_DATE, length: 8 )
• LIFECYCLE ( type: esriFieldTypeString, alias: LIFECYCLE, length: 20 , Coded Values: [Design Plan: Design Plan] , [Redline: Redline] , [Active: Active] , ...2 more... )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• PHOTO_HYPERLINK ( type: esriFieldTypeString, alias: PHOTO_HYPERLINK, length: 250 )
• PLAN_HYPERLINK ( type: esriFieldTypeString, alias: PLAN_HYPERLINK, length: 250 )
• Shape.STLength() ( type: esriFieldTypeDouble, alias: Shape.STLength() )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates
